CT02 series Current transformer with DC immunity use Iron (Fe) base (80A)core low price high Accuracy , copper bar
Features:
1. With high permeability core, excellent linearity, excellent linear performance
2. It is applicable for working frequency 50-400Hz
3. With burnt-resistant ABS case and epoxy resin, current transformer can reach insulation resistance of 500VDC ≥100mΩ, electrical strength 3000VAC,1mA 60S.
4. Primary applies with copper bar, able to be directly installed to the button box, low load resistance, safety mounting.
For our current transformers, which are produced by using high permeability permalloy core or good quality laminated silicon steel core, inflammable epoxy resin and case with our high precision toroidal winding machine & current transformer testers, steady quality and reliable safety, are widely applied in electronic energy meter, power transducer, RTU, electronical monitoring meter, power factor compensator, digital meter, motor control, industrial control system, electrical meter equipment, etc.

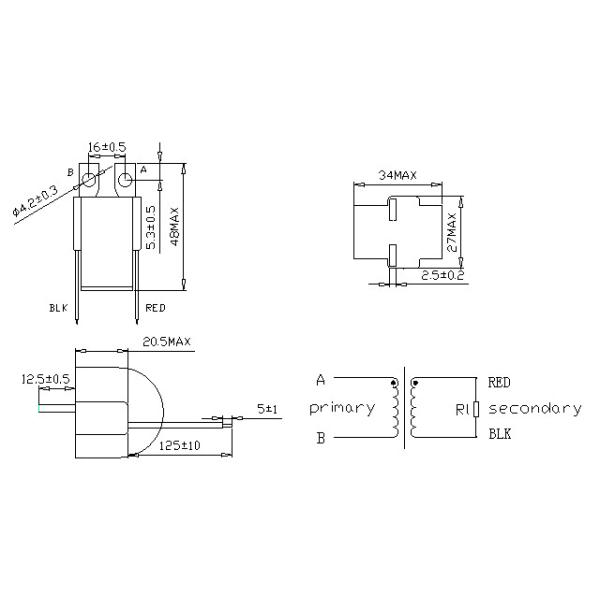

CT02A
CT02B
| Performance & Specification |
| Part No. |
Rated primary current (A) |
Max primary current (A) |
Rated secondary current (A) |
Rated sampled resistance(Ω) |
Output voltage (mV) |
Accuracy class |
Outline |
| CT02A |
5 |
40 |
2.5 |
40 |
100 |
0.1, 0.2 |
CT02A |
| 5 |
40 |
5 |
40 |
100 |
0.1, 0.2 |
| CT02B |
10 |
50 |
10 |
10 |
100 |
0.1, 0.2 |
CT02B |
| 10 |
60 |
10 |
10 |
100 |
0.1, 0.2 |
For example
CT02B-5(80)A/2.5mA Class 0.1
| ELECTRICAL CHARACTERSTIC: |
| NO. |
ITEM |
MEASURED POINT |
TECHNICAL DATA |
REMARK |
| 1 |
Normal Primary Current |
A--B |
5A |
|
| 2 |
Normal Secondary current |
RED--BLK |
2.5mA |
|
| 3 |
Maximum Primary current |
A--B |
80A |
|
| 4 |
Turns ratio |
|
1:2000 |
|
| 5 |
Operating ambient temperature |
|
-40~85℃ |
|
| 6 |
Load Resistance |
|
7.5Ω |
|
| 7 |
DC Resistance |
|
80Ω MAX |
|
| 8 |
DC-Tolerance |
BLK--WHT |
±3% |
I=56.57A |
| 9 |
Accuracy |
|
0.10% |
|
| 10 |
HI-POT |
P-S |
AC4000V 60S 1mA |
| MATERIAL LIST: |
| NO. |
ITEM |
MATERIALS |
REMARK |
| 1 |
CORE |
Ø18*24*10-DC Iron (Fe) base (80A) |
|
| 2 |
CASE |
CT02H ABS inflammable |
|
| 3 |
TAPE |
1mil*8mm CT-28 130℃ |
E59481(S) |
| 4 |
WIRE |
UEW-2 Ø0.18mm 130℃ |
E85640 |
| 5 |
LEAD WIRE |
UL1007 AWG24# L=165mm BLK/RED |
|
| 6 |
U clip |
φ4.2 T=2.5mm (BTC01) |
|
| 7 |
EPOXY |
3300A/B |
|
